Location: Product=>Wireless Tour Guide System =>32 Series=>Wireless Tour Guide System SPL-32

Wireless Tour Guide System 32 Series




━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Main Applications

   Touring
   Widely used in touring, visiting museums, exhibitions and factories.
   Guest reception
   Used in reception of visitants in product presentation, advanced exhibition of large companies.
   Simultaneous interpretation
   International conference simultaneous interpretation.
   Teaching
   Wider use in meeting, school teaching and so on.
   Stage monitoring
   Wireless monitor of the performance: especially for the acting singer to monitor the accompaniment.






━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

  Special Features of wireless tour guide system

    Portable design, super compact and lightweight.

    Metal aluminum alloy shell design.
    UHF band PLL synthesized design.
    38 Fixed-channels and 32 User-channels design, frequency of User-channel can be set by user.
    32 channels (languages) can be switched quickly.
    96*64 dot matrix white LCD display.
    LCD display channel, frequency, volume, battery state, RF level, audio level and overload prompt .
    "Digital Pilotone & RF Noise Lock" dual-squelch circuit of Soolai original creation, to improve anti--interference
  performance of system.
    High performance double-IF circuit design.
    Adopt multi-stage high performance RF filter, high anti-interference performance to ensure mutiple channels can be
   used simultanously without interference.
    Digital 16-step volume control of receiver.
    Digital 21-step SQ adjusting of receiver.
    31 steps microphone gain adjustment (-10~+20dB) of transmitter.
    HIGH/LOW RF power output adjustment of transmitter.
    Quick-mute function of transmitter.
    Built-in polymer ion polymer battery, continuously working for 12-13hours.
    Unique design of the main device and the clip is separated, and there are two ways of wearing by lanyard and waist
   hanging.
    Parameter setting with password protection.
    Variously charging equipments for choice, convenient to charge, disinfect, store and carry.
    Operating range 200m (line-of-sight).
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

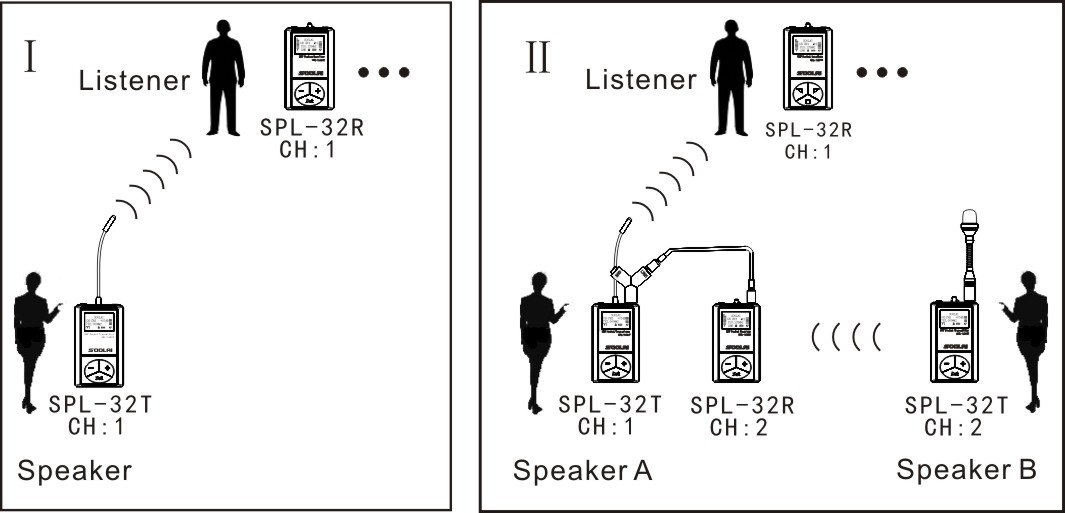

  Tour Guide Application



The speakers’ voice is clearly heard by listeners. Receivers quantity is unlimited.

Listeners can hear both speaker A and speaker B .

A multi-person speaker recommended to use the full-duplex tour guide system TG-900.


━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

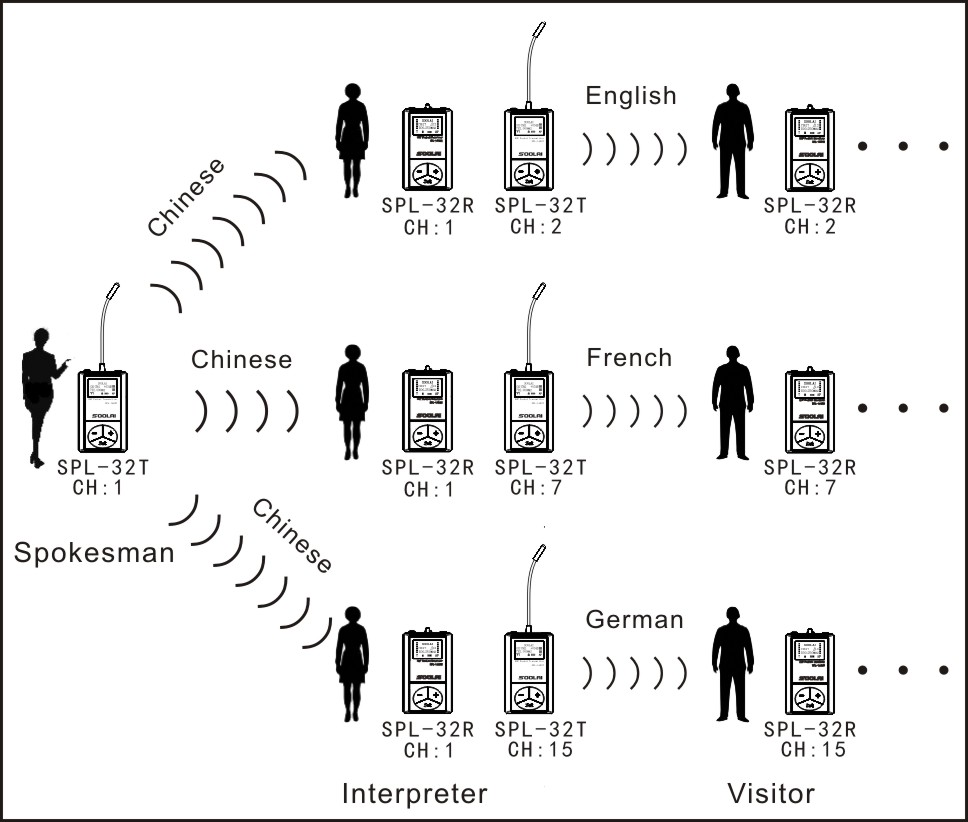

  Simultaneous lnterpretation Application



Spokesman’s voice was emitted by a wireless transmitter.

Interpreters can monitor the spokesman by wireless receivers and then their transliteration were emitted by other wireless transmitters.

While visitors can hear different languages by taking wireless receivers on different channels.


━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Charge & Storage



SCB-24AD

SC-100A

    24-slots charging case
100-slots charger

  Charging 24 units at same time  Charging 100 units at same time
  Charging time is about 4-5 hours Charging time is about 2-3 hours
  Within Ozone disinfection function
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Specifications of wireless tour guide system

   RF Carrier Frequency Range  UHF 788-812MHz (F800-24 )
   Oscillation Type  PLL Synthesized
   Frequency Stability  ±0.005% (0~50℃)
   Display Screen  96*64 dot matrix LCD Display
   Tuneable Channels  38 Fixed channels+32 User channels
   Switching Bandwidth  Up to 24MHz
   Tunable Steps  625KHz (Fixed channel),25KHz(User channels)
   Modulation   ±45KHz deviation,compander system with pre-and de-emphasis
   Signal-to-Noise Ratio  >90dB typical (A-weighted )
   Total Harmonic Distortion  <0.5%ref.±45KHz deviation,1KHz modulation)
   Audio Frequency Response  50 - 15,000Hz, ±3dB
   Power Supply  Lithium ion polymer battery 3.7v/600mAh
   Dimension  69mm * 42mm * 14mm
   Unit Weight  <50g (With battery)
   Operating Temperature  -20℃ to +70℃
   Operating Range  >200m (Environment dependent)
   Certificates  FCC、CE
   Note① : Country depended
   F652-24: Frequency Band 640~664MHz (38 Fixed channels+32 User channels)
   F800-24: Frequency Band 788~812MHz (38 Fixed channels+32 User channels)
   F827-09: Frequency Band 823~832MHz (38 Fixed channels+32 User channels)
   F864-02: Frequency Band 863~865MHz (81 Fixed channels+32 User channels)
   F858-24: Frequency Band 846~870MHz (38 Fixed channels + 32 User channels)
   F915-26: Frequency Band 902~928MHz (42 Fixed channels + 32 User channels)
   Other frequency band can be customed

              Transmitter SPL-32T
     Antenna  1/4 λ flexible antenna or uses microphone cable
 RF Power Output  10mW/20mW
 Harmonic Suppression  >50dB
 Modulation  FM ±45KHz deviation (nominal)
 Microphone Input  Unbalanced, 3.5mm connector(Tip)
 Line Input  Unbalanced, 3.5mm connector(Ring)
 Microphone Gain Adjustment  Programmable in 31 steps, -10dB to +20dB
 Operating Time  11-12 hours (High Power) 18 hours(Low Power)

    Receiver SPL-32R
   Sensitivity  2uV (60dB S/N)
   Antenna  Uses earphone cable
   Intermediate Frequency(IF)  Double-IF 110.6MHz/10.7Mhz
   Image Rejection  80dB Typical
   Spurious Rejection  80dB Typical
   Audio Output  3.5mm connector
   Volume control  16 steps digital volume control
   Minimum load Impedance  12Ω
   Operating Time  12-13 hours
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Accessories of wireless tour guide system



SA-110

SA-120

SA-130

SA-90


Lavalier Mic

Headset Mic

Micro-pole mic

Clip


  无线导游系统-专用头戴式耳机

SA-51

SA-215

SA-62

T-205

SA-91


Headphone

Single-side Earphone

Earphone

Neckloop

Lanyard




SC-02A

SC-10A

SCB-24AD

SCB-32AD

SC-100A


2-slots charger

10-slots charger

24-slots charging/
disinfection case

32-slots charging/
disinfection case

100-slots charger
