| UHF Headset Wireless Tour Guide System TG-900HR |
 |
 |
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Main Feature |
| ● Built-in speaker. |
| ● Headset folding telescopic structure design. |
| ● The welcome screen can be customized. |
| ● 32 channels can be switched quickly. Support channel name, channel and frequency to be switched and displayed |
| synchronously. |
| ● Fixed channel + 32 user channel design, the frequency and the name of 32 user channel can be set independently. |
| ● UHF band PLL synthesized design. |
| ● Dual band 863-865MHz and 845-870MHz adjustable. |
| ● Digital Pilotone & RF Noise Lock double mute function design, to eliminate the noise interference. |
| ● High performance double-IF circuit design, with extremely high receiving sensitivity. |
| ● 128*64 dot matrix, double-color 0.96inch OLED display. |
| ● Display of channel, frequency, name, volume, battery level, received signal strength, audio level, audio signal overload |
| indication, and lock icon on screen. |
| ● 16-level digital volume control. |
| ● 21-level digital SQ adjustment. |
| ● Built-in large capacity polymer li-ion battery, can continuously work for more than 20 hours. |
| ● OLED screen saver function. |
| ● Auto shutdown function, it will shut down automatically if receives no signal from the transmitter. |
| ● Operating range is more than 200m in open area. |
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

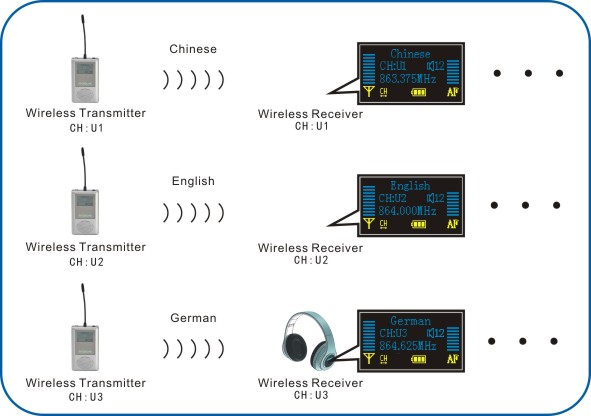

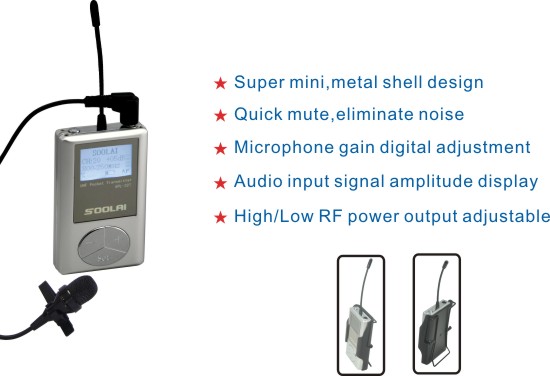

| UHF Portable Wireless Transmitter |

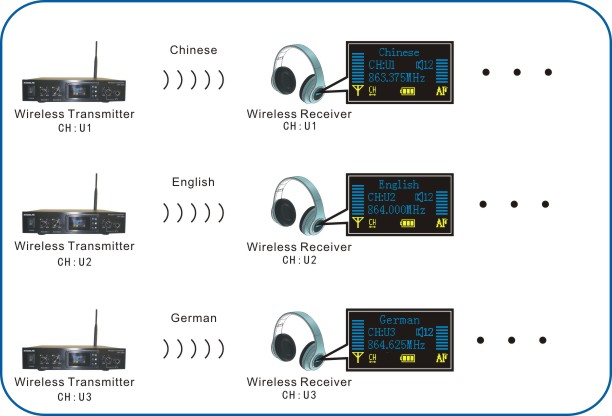

| ● Support simultaneous interpretation in 32 languages. |
| ● No limit to the quantity of the wireless receivers. |
| ● User can switch languages to listen.Support the language name,channel,frequency to be switched synchronously to |
| display. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

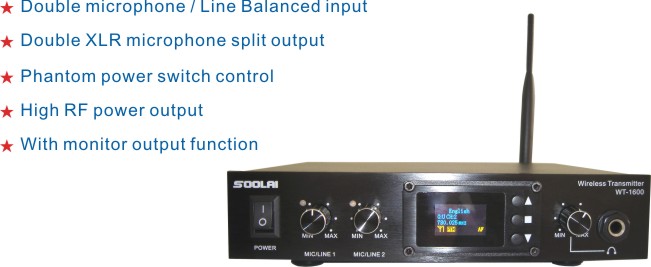

UHF Desktop Wireless Transmitter |
| |
|
| |
|
| ● Support simultaneous interpretation in 32 languages. |
| ● No limit to the quantity of the wireless receivers. |
| ● User can switch languages to listen.Support the language name,channel,frequency to be switched synchronously to |
| display. |
| ● Suitable for outdoor use. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

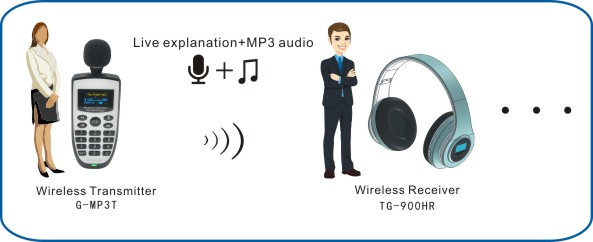

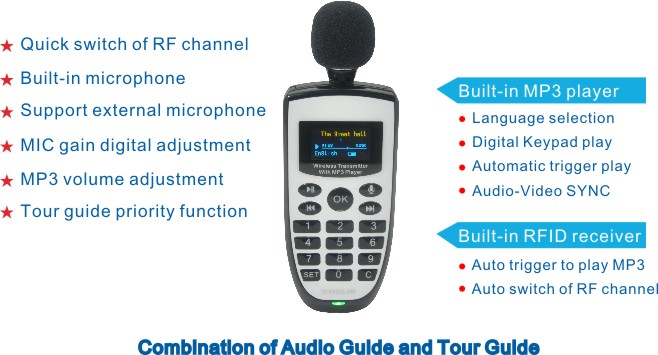

| UHF Wireless Transmitter With MP3 Player |
| |
|
|
|
| ● The transmitter can explain and play the MP3 audio; the receivers can hear the live explanation and the MP3 audio |
| at the same time. |
| ● MP3 that is playing can be automatically paused while the speaker is explaining,and MP3 can continue playing when |
| the speaker stops explanining. |
| ● No limit to the quantity of the wireless receivers. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

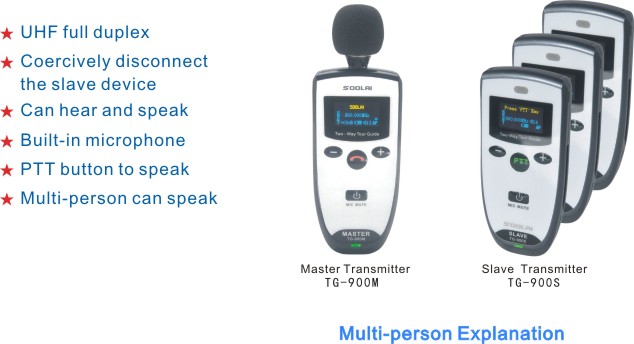

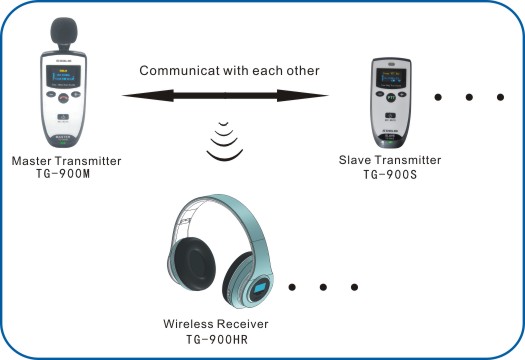

| UHF Multi-person Explanation Wireless Transmitter |
| |
|
| |
|
| ● The wireless transmitters need to configure a master transmitter,and one or more slave transmitter. |
| ● The wireless receiver can hear the voice from the master transmitter and the speaking slave transmitter at the |
| same time. |
| ● No limit to the quantity of slave transmitters,multi-person can speak in turn through pressing the“PPT”button of |
| slave transmitter. |
| ● The master transmitter can coercively disconnect the speaking slave transmitter,so that the other slave transmitters |
| can speak. |
| ● No limit to the quantity of the wireless receivers. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

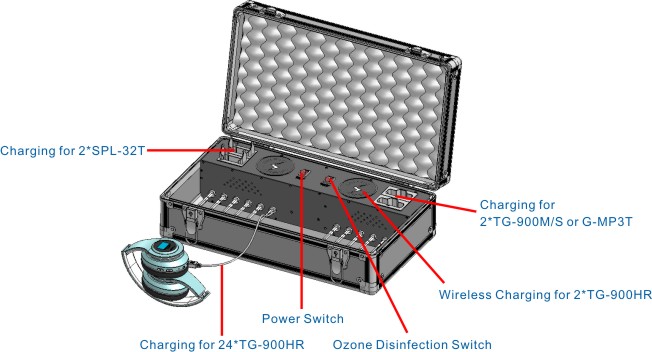

| Portable Charging & Disinfection Case |
| |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| Specifications of wireless tour guide system |
| |
|
|
|
| |
RF Carrier Frequency Range |
Dual-band 863-865MHz /845-870MHz(Adjustable) |
|
| |
Oscillation Type |
PLL Synthesized |
|
| |
Frequency Stability |
±0.005%(0～50)℃ |
|
| |
Display Screen |
OLED display,0.96 inch |
|
| |
Tuneable Channels |
4/38 fixed channels+32 user channels |
|
| |
Switching Bandwidth |
2MHz /25MHz |
|
| |
Tunable Steps |
625KHz(Fixed channel) /25KHz(User channel) |
|
| |
Modulation
|
±45KHZ deviation(nominal) |
|
| |
Intermediate Frequency |
Double-IF 110.6MHz /10.7MHz |
|
| |
Signal-to-Noise Ratio |
>92dB(A) |
|
| |
Total Harmonic Distortion |
<0.5%@1KHz,±45KHz modulation |
|
| |
Audio Frequency Response |
30～16000Hz(±3dB) |
|
| |
RF Sensitivity |
0.7uV(12dB SINAD),2uV(30dB SINAD) |
|
| |
Squelch Threshold(SQ) |
21 digital adjustable,2uV start control |
|
| |
Audio Output Control |
16-level digital volume |
|
| |
Built-in Speaker |
φ40mm,32Ω |
|
| |
Line Output |
3.5mm connector |
|
| |
Power Supply |
Lithium ion Polymer battery,3.7V /1000mAh |
|
| |
Electric Current |
45mA max |
|
| |
Operation Time |
>20 hours |
|
| |
Operation Temperature |
-20℃～+70℃ |
|
| |
Operation Distance |
>200m(Environment determined) |
|
| |
Weight |
<250g(Battery included) |
|
| |
Color |
Black / Light blue |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
|
|
