Location: Product=>Audio Guide System=>Audio Guide System AG-600C

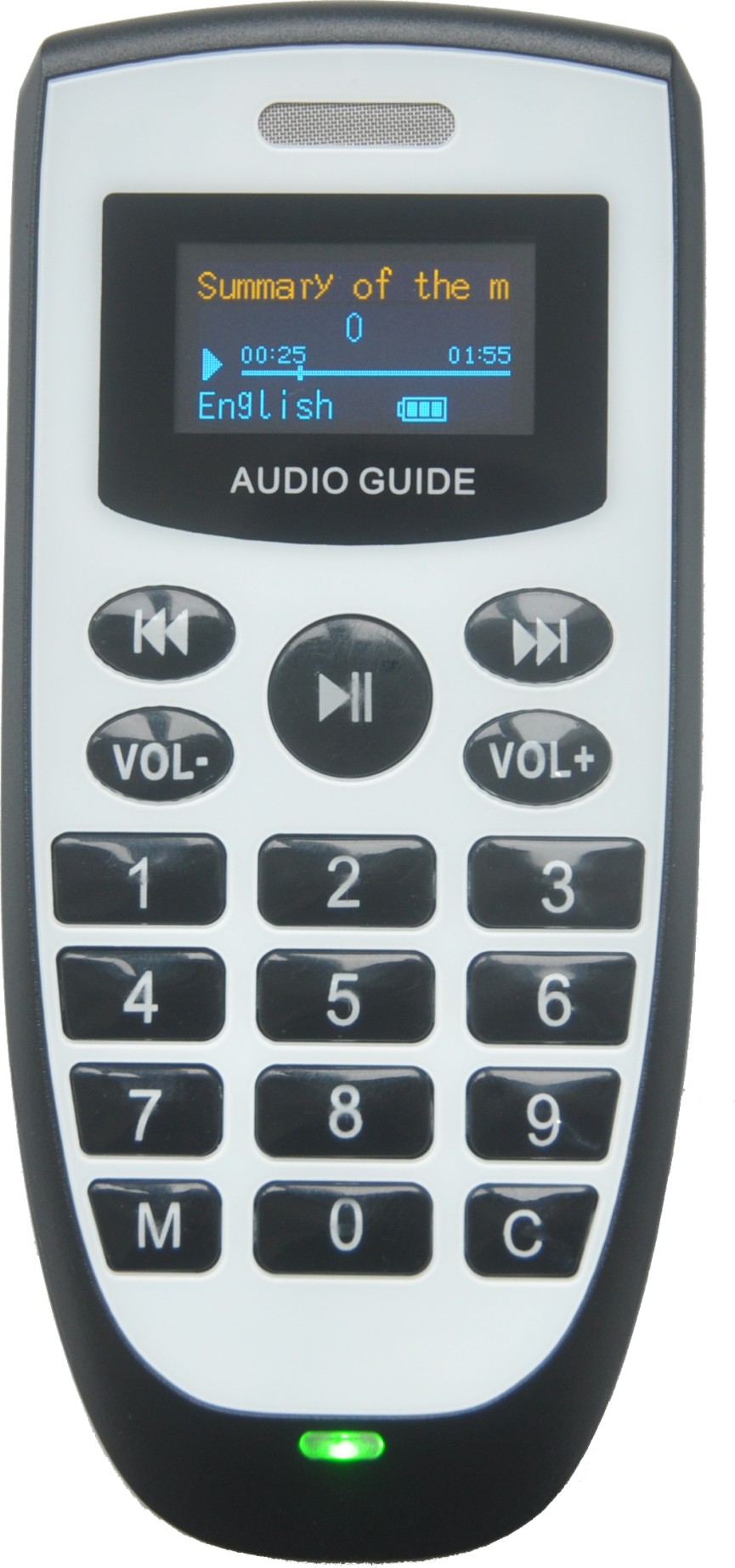

Audio Guide System AG-600C


━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

  Main Feature of audio guide system

    Built in speaker, 3.5mm stereo headphone jack output.
    Yellow and blue dual color OLED display.
    Support audio files of Mp3 format, 8-48KHz sample rate,8-320kbps bit rate and VBR.
    99 different languages available, 4096 audio files supported by each language.
    Object name display, Support multi-language characters.
    Play on demand by numeral button.
    Auto shutdown function.
    With the functions of play,pause, fast forward and fast rewind.
    The charger is compatible with 19 inch standard server network cabinet assembly.
    High capacity lithium-ion battery, continuous operating time is more than 18 hours.
    Special upload software convenient to update audio contents.
    More functions refer to Smart Audio Guide System AG-600 / Intelligent Audio Guide System AG-600N.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Uploading and charging


audio guide - uploading


12 slots uploader SU-12B

Uploading software S-Loader


Charging 12 unit simultaneously

Windows XP/Win7/Win10 systems


Uploading 12 unit simultaneously



audio guide - charging


      60-Slots Charger
      132-Slots Charger


    19 inches standard cabinet 12U
    19 inches standard cabinet 24U

     Dimensions: 650*500*400mm
     Dimensions: 1200*600*600mm
       5pcs charger SC-12B         5pcs charger SC-12B

    Charging current: 400mA*60
     Charging current: 400mA*132
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  System Specification of audio guide system

    Ways of play  Play on demand by numeral button
 File Format  Mp3 Format (8-48KHz sample rates,8-320kbps bit rate)
 Memory Capacity  2GB
    Multi-Language  99 (Maximum)
 Tracks Number  4096 (per language)
    Display name of object  Support multi-language text display
    Display screen  128*64 dot matrix, OLED Double Color
    Built in speaker  8Ω/0.5W
   Play controls  Play/Pause, Fast forward/Fast rewind, Previous/Next
   Audio Frequency Response  50~18,000Hz
   Distortion  <0.02%
   Audio Dynamic Range  88dB
   S/N Ratio  96dB
   Operating Temperature  -10~60℃
   Power Supply  Lithium ion battery 3.7v/1020mAh
   Operating Time  About 18 hours
    Dimension  108*49*16mm
 Weight  50g (include battery)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Optional Accessories of audio guide system


SA-215

SA-62

SC-02B

SC-12B/SU-12B

SCB-24BD

Single-side Earphone

Earphone

2-Slots Charger

12-Slots Charger/

24-Slots Charging/

12-Slots Uploader
Disinfection case
