Location: Product=>Audio Guide System=>AG-600

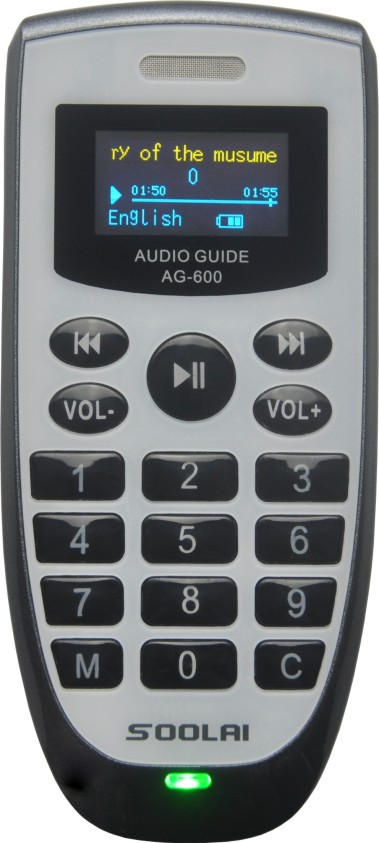

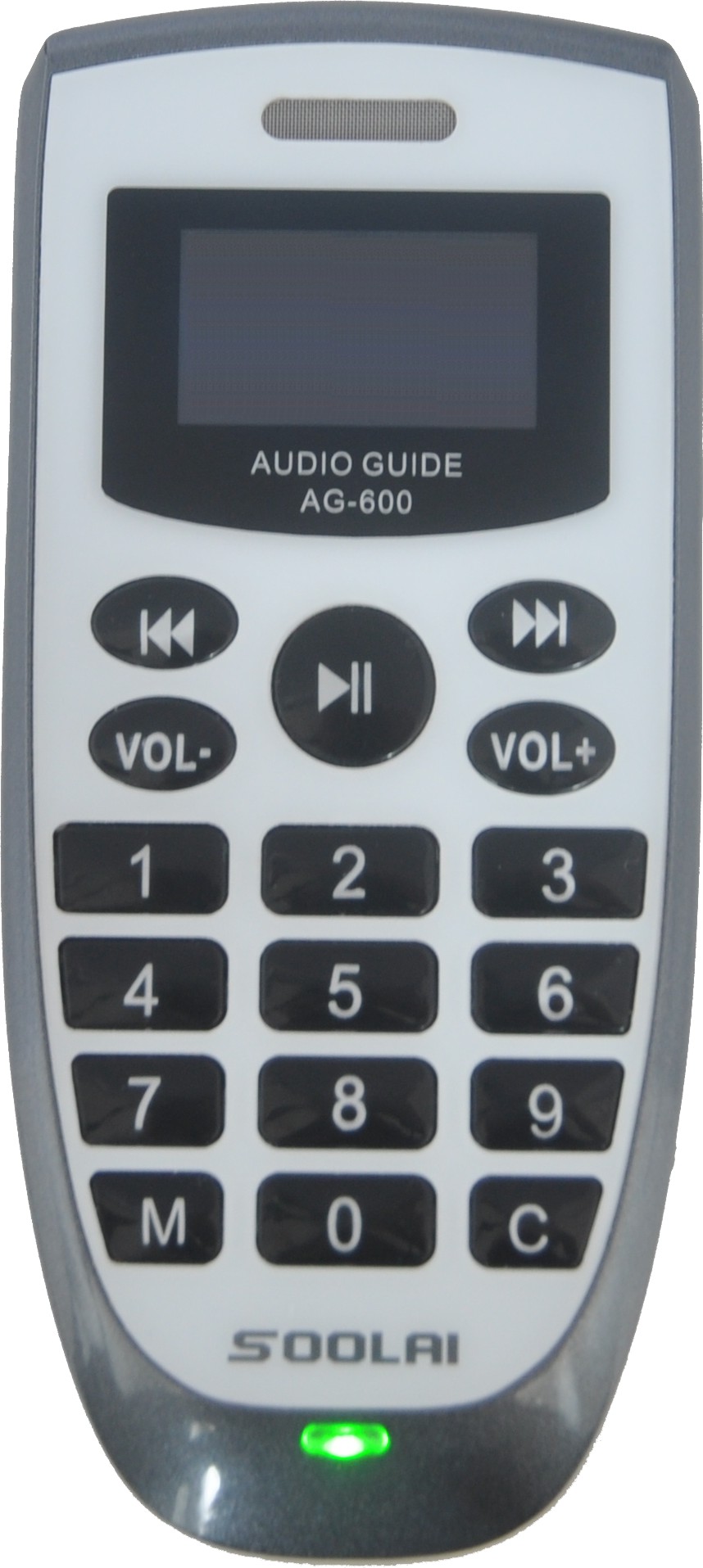

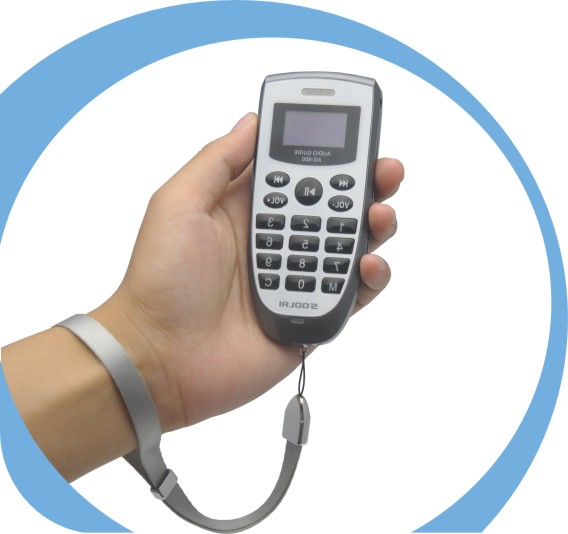

Audio Guide System AG-600



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Main Feature of audio guide system

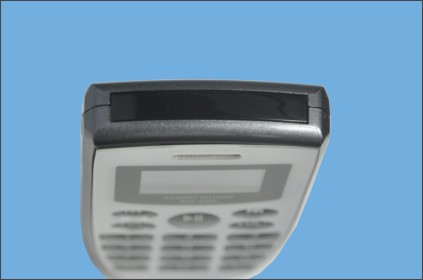

    Built in speaker, 3.5mm stereo headphone jack output.
museum audio guide

    Yellow and blue dual color OLED display.
    Welcome screen can be custom made.
    Support audio files of Mp3 format, 8-48KHz sample rate, 8-320kbps bit rate and VBR.
    99 different languages available ,4096 audio files supported by each language.
    Automated switch language.
    Object name display, Support multi-language characters.
    Keypad play function.

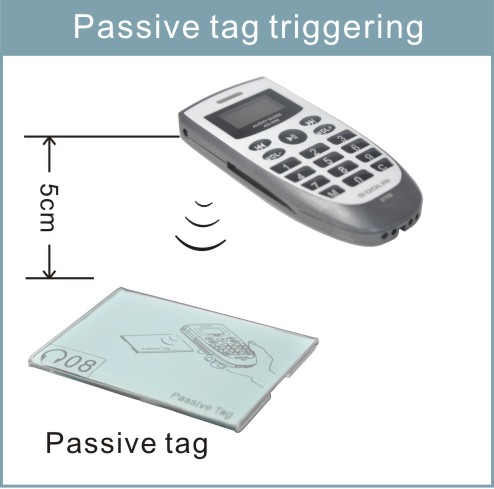

    Can be triggered by passive tag within 0-5cm.
museum audio guide

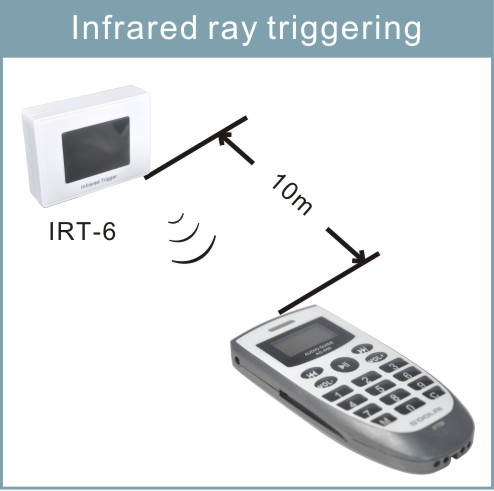

    Can be triggered by infrared ray within 0-10m.
    Can be triggered by RF signal within 0-100m.
    Maximum volume output can be locked.
    With play restrict and play times statistics functions, applied to rental.
    With the functions of play,/pause,fast forward/fast rewind, previous/next.
    The latest three trigger contents can be selected and replayed.
    Auto playing background music when trigger playing ended.
museum audio guide

    With vibrate and buzzer trigger prompt function.
    With anti-theft alarm function.
    With audio video sync function, visitors will hear synchronous audio when video is playing.
    Battery states of RFID trigger RFT-6 and infrared trigger IRT-6 can be displayed on Audio
     Guide.
    The charger is compatible with 19 inch standard server network cabinet assembly.
    High capacity lithium-ion battery, continuous operating time is more than 12 hours.
    Parameters only can be changed by wireless decoder, prevent guests amending parameters.
    Special upload software convenient to update audio contents.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Select multi-languages


audio guide-chinese
audio guide-english
audio guide-german
audio guide-french
audio guide-russian
audio guide-spanish




audio guide multi-language



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Smart Triggering

  audio guide-passive tag
audio guide-infrared trigger

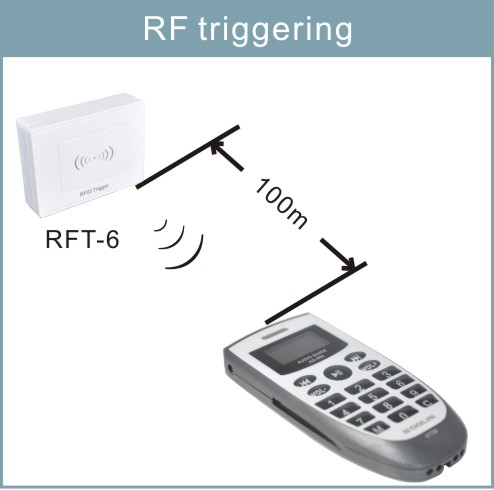

audio guide-RFID trigger

  Passive Tag L45A
Infrared Trigger IRT-6
RFID Trigger RFT-6

  Activate range:0~5cm Activate range:0~10m,4 steps adj Activate range:0~100m,16 steps adj
  NO power supply Battery:AA alkaline battery 1.5V*2 Battery:AA alkaline battery 1.5V*2
    Battery life:>15 months (measured) Battery life:>3 years (measured)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

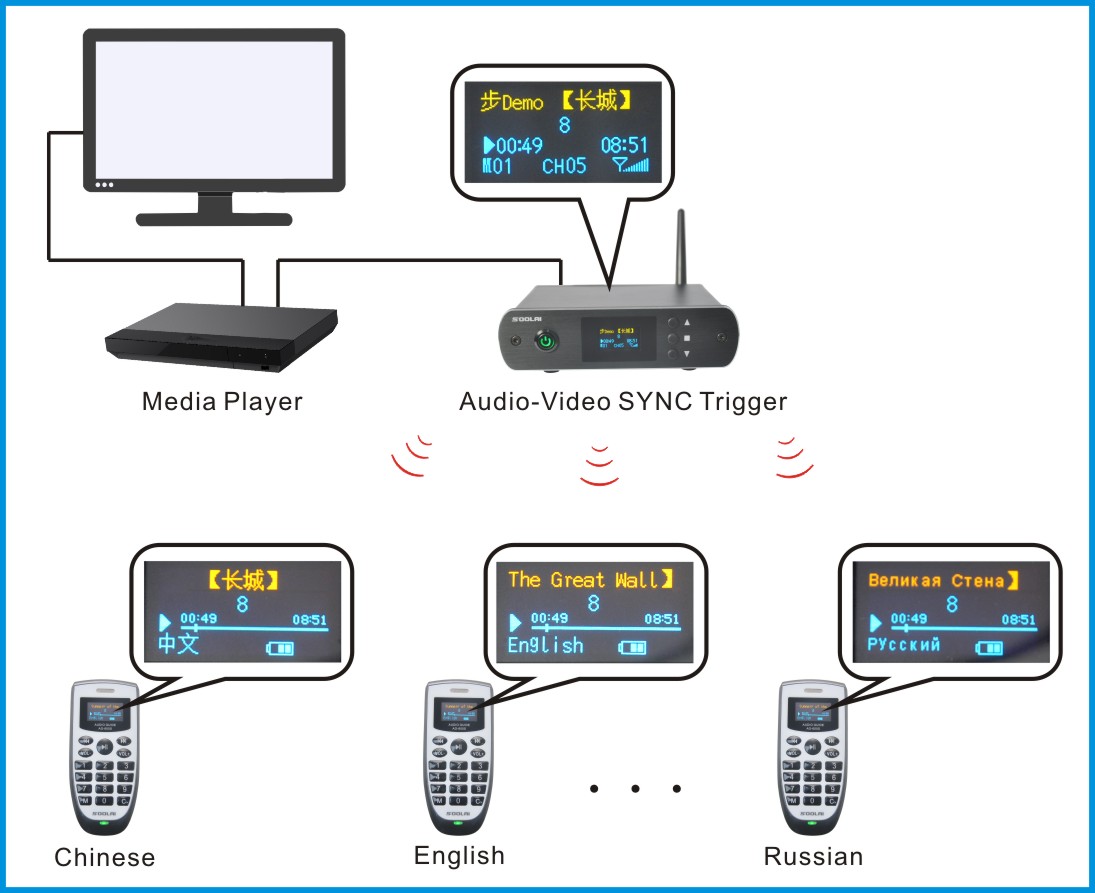

  Application of Audio Video Synchronization


audio guide-audio video sync







The video output AVT-6 connect
to video.

Visitors who carry Audio Guide
unit enter trigger area of Audio Video
sync trigger AVT-6.

The audio guide unit would trigger
and play synchronous audio of video
in visitors’ required language
automatically.



━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

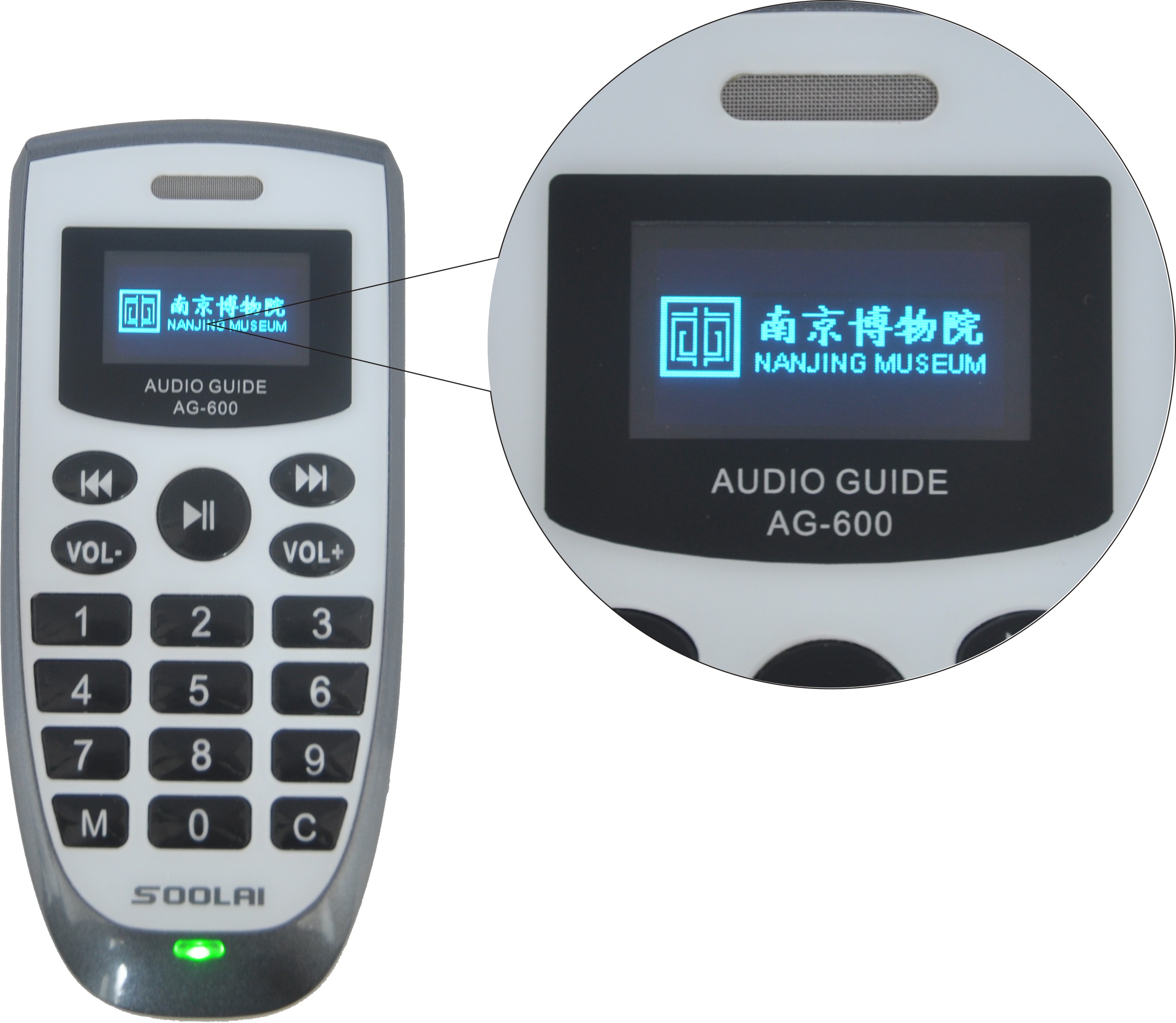

  Welcome screen customization


audio guide-welcome

  Welcome display screen could show any character, pattern, logo, etc.
  And welcome display can be edited by user own.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

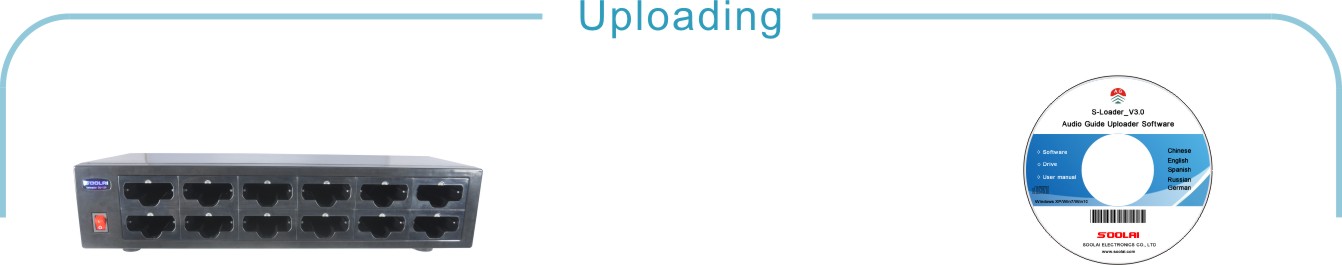

  Uploading and charging



audio guide - uploading



12 slots uploader SU-12B

Uploading software S-Loader


Charging 12 unit simultaneously

Windows XP/Win7/Win10 systems


Uploading 12 unit simultaneously

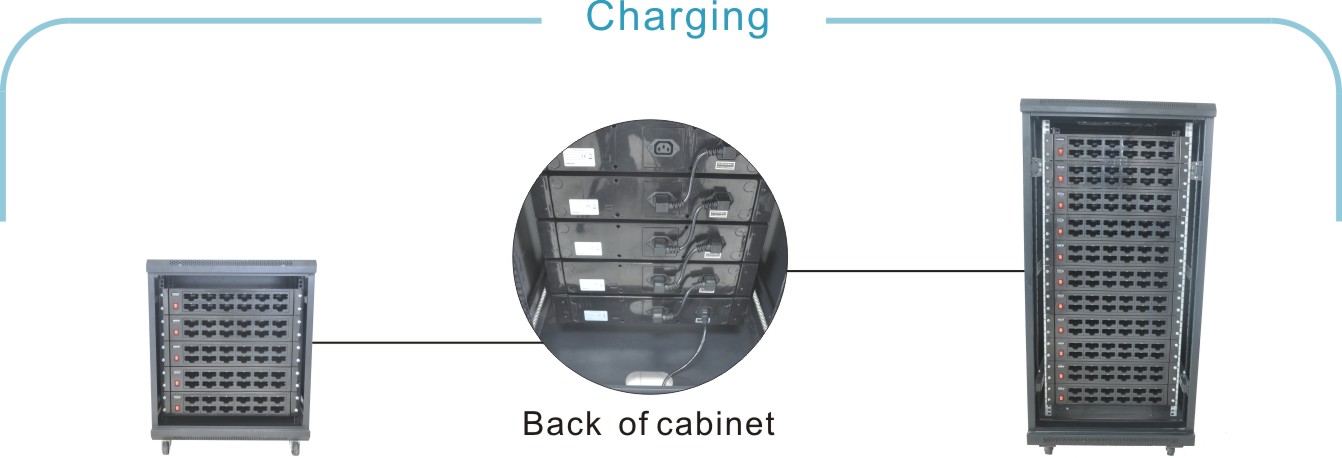

audio guide - charging


      60-Slots Charger
      132-Slots Charger


    19 inches standard cabinet 12U
    19 inches standard cabinet 24U

     Dimensions: 650*500*400mm
     Dimensions: 1200*600*600mm
       5pcs charger SC-12B        11pcs charger SC-12B

    Charging current: 400mA*60
     Charging current: 400mA*132
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  System Specification of audio guide system

    Ways of play  Keypad play & Automatic triggering play
 RF Trigger  2.4GHz / 0~100m trigger range (16 steps)
 Infrared Ray Trigger  38KHz / 0~10m trigger range (4 steps)
 Passive Tag Trigger  13.56MHz / 14443A standard / 0~5cm trigger range
    File Format  Mp3 Format (8-48KHz sample rates, 8-320kbps bit rate)
 Memory Capacity  4GB (Optional 8G/16G/32G)
    Multi-Language  99 (Maximum)
    Tracks Number  4096 (per language)
    Display name of object  Support multi-language text display
    Display screen  128*64 dot matrix, OLED Double Color
    Built in speaker  8Ω/0.5w
    Play controls  Play/Pause, Fast forward/Fast rewind, Previous/Next
   Anti-theft alarm function  Support
   Audio Frequency Response  50~18,000Hz
   Distortion  <0.02%
   Audio Dynamic Range  88dB
   S/N Ratio  96dB
   Operating Temperature  -10~60℃
   Power Supply  Lithium ion battery 3.7v/1020mAh
   Operating Time  About 12 hours
    Dimension  108*49*16mm
 Weight  50g (include battery)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━


  Optional Accessories of audio guide system


RFT-6

IRT-6

L45A / B

K96

EW100

RFID Trigger

Infrared Trigger

Passive Tag

Display Card

Passive Tag Reader



WD-900

AVT-6

SC-02B

SC-12B / SU-12B

SCB-24BD

Wireless Decoder

Audio Video Trigger

2-Slots Charger
  12-Slots Charger/

24-Slots Charging/

12-Slots Uploader
Disinfection Case
